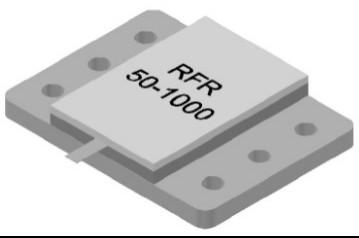

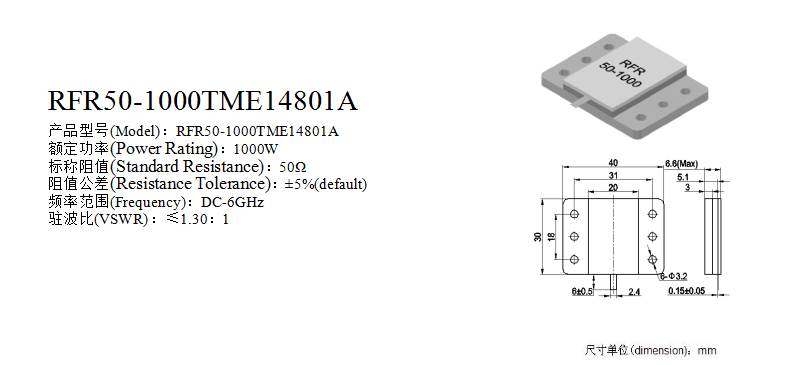

1000W BeO AlN Al2O3 20*30mm Flange Mount Resistor DC 6GHz

Flange Mount Resistors 50Ω 1000w BeO AlN Al2O3 DC-6GHz 20*30

• (Standard Resistance):100Ω(4Ω-400Ω available)
• (Substrate Material):BeO, AlN ,Al₂O₃
• (Resistance Tolerance):± 5%(default)；± 2%；± 1%
• (Power Rating):2～800W
• (Temperature Range):-55～+150℃
• (Temperature Coefficient):< 150ppm/℃
• (RoHS Compliant)
• (We can provide the customized product according to the customers’ requirement, such as Lead Length, Resistance and Configuration. )

• (Product Reference)

  平均功率	尺寸						产品型号
  Power Rating	Dimensions(mm)						Model
  (W)	W	L	T	H	I	Tw
  75	6.35	9.5	3.3	N/A	N/A	N/A	RFR50N-75RDAA2305A
  250	9.5	9.5	3	N/A	N/A	N/A	RFR50N-250RBAH2504A
  250	10	10	1.5	N/A	N/A	N/A	RFR100-250RBDT1504A
  250	12.7	10	2.6	N/A	N/A	N/A	RFR100-250RBAB1702A
  1000	25.4	26.4	1.5	N/A	N/A	N/A	RFR100-1000REG3106A

Chip terminals FAQ

Q1: When can I get the company profile, price and product information?
A4:Usually we offer you with these information within 1 hour after we get your inquiry.
Q5: How could I get a sample?
A5: If you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all
related shipping costs.Express delivery charge depends on the quantity of the samples.
Q6: What is your payment terms?
A6: For first order,we need deposit,then we can start produce goods for you.
After we have good relation and know each other better, you can pay us before shipment and no need deposit.

20*30mm Flange Mount Resistor

Flange Mount Resistor DC 6GHz

1000W BeO Flange Resistor

1000W BeO AlN Al2O3 20*30mm Flange Mount Resistor DC 6GHz Images
